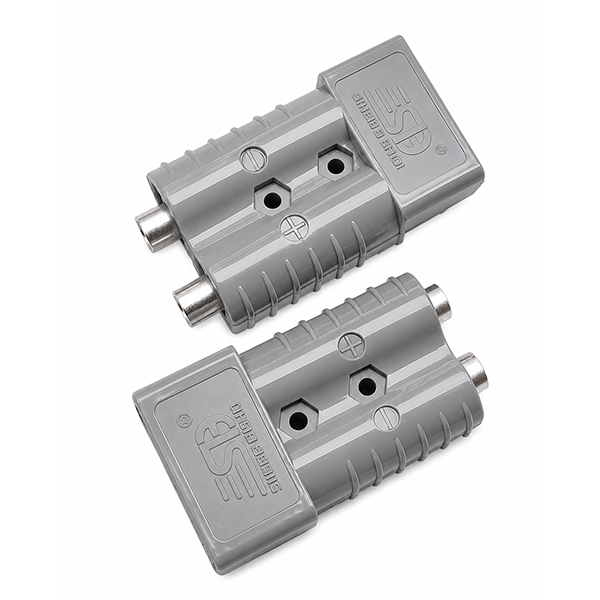

Sheng 50A Anderson Style Connectors
Sheng 50A Anderson Style Connectors provide a secure, reliable and high-performance connection for 12V and 24V DC power systems. Manufactured to the industry-standard SB50 format, these connectors are compatible with other SB50-style connectors, making them ideal for caravans, 4WDs, camper trailers, marine applications, solar installations and battery charging systems.
Designed for durability, Sheng connectors feature a heavy-duty polycarbonate housing that resists impact, vibration and harsh Australian conditions. Their genderless design allows quick and simple connection while maintaining a secure electrical connection for dependable power transfer.
Available in Grey, Red, Blue, Yellow and Black, these connectors make it easy to colour-code different circuits, voltages or battery systems, helping prevent incorrect connections and simplifying installation.
Key Features
- 50A continuous current rating
- Industry-standard SB50 Anderson-style connector
- Compatible with most SB50-style connectors
- Suitable for 12V and 24V DC systems
- Heavy-duty impact-resistant housing
- Genderless design for quick connection
- Silver-plated copper terminals for excellent conductivity
- Resistant to vibration, dust and harsh operating environments
- Available in Grey, Red, Blue, Yellow and Black
Ideal Applications
- Caravan and camper trailer power systems
- 4WD auxiliary battery installations
- DC-DC battery chargers
- Battery-to-battery connections
- Solar panel and battery systems
- Portable power stations
- Marine electrical systems
- Industrial and commercial DC power applications
- Winch and accessory power connections
Specifications
| Specification | Details |
|---|---|
| Brand | Sheng Connectors |
| Product Type | Anderson Style Connector |
| Series | SB50 Compatible |
| Current Rating | 50A Continuous |
| Voltage Rating | Up to 600V DC |
| Connector Type | Genderless, Two Pole |
| Housing Material | High-Impact Polycarbonate |
| Housing Colour | Grey, Red, Blue, Yellow, Black (subject to selection) |
| Contact Material | Silver-Plated Copper |
| Contact Style | Crimp Contacts |
| Wire Size Compatibility | 6-12 AWG (Approx. 3.3-13.3mm2) Depending on contact supplied |
| Contact Retention | Stainless Steel Spring |
| Connection Method | Crimp Termination |
| Operating Temperature | -20C to +105C |
| Flammability Rating | UL94 V-0 Equivalent* |
| Polarity | Colour-Keyed Housing |
| Mating Cycles | 10,000+ Typical |
| Housing Design | Impact Resistant |
| Connector Format | SB50 Anderson Style Compatible |
| Suitable Voltage Systems | 12V, 24V, 36V & 48V DC |
| Compliance | RoHS Compliant* |
| Warranty | Manufacturer Warranty |
*Always verify wire size compatibility with your specific installation requirements.
Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length | 48mm |
| Overall Width | 36mm |
| Overall Height | 16mm |
| Contact Barrel Diameter | Approx. 7mm |
| Contact Length | Approx. 25mm |
| Weight | Approx. 18g (Housing & Contacts) |
Why Choose Sheng Connectors?
Sheng connectors are manufactured to the widely recognised SB50 connector design, offering dependable performance and broad compatibility with many Anderson-style connectors. They provide a cost-effective solution without compromising on durability, making them suitable for both professional installers and DIY enthusiasts.
Whether you're wiring a dual battery system, connecting a DC-DC charger, installing solar panels or powering accessories, Sheng 50A Anderson Style Connectors deliver a secure and reliable connection you can depend on.
