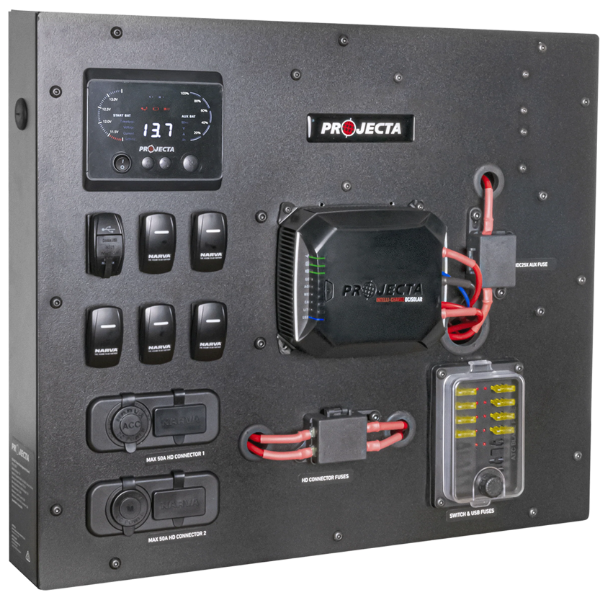

Projecta ICBDC 12V Power Management Board - Includes IDC25X

Projecta ICBDC 12V Power Management Board

Simplify your off-grid power setup with the Projecta ICBDC Power Management Board. Purpose-built for ute canopies, caravans, camper trailers and 4WD touring vehicles, this all-in-one power management solution combines intelligent battery charging, power distribution, monitoring and circuit protection in a compact, easy-to-install package.

The ICBDC features a powerful IDC25X DC-DC charger with integrated MPPT solar regulation, allowing simultaneous charging from both alternator and solar inputs. An easy-to-read LCD battery monitor with Bluetooth connectivity provides real-time battery information directly from the display or via the mobile app.

Designed for convenience and reliability, the board includes multiple charging and power outlets, heavy-duty battery connectors, integrated switching, and low-voltage battery protection to help maximise battery performance and lifespan.

Key Features

Intelligent DC-DC Charging

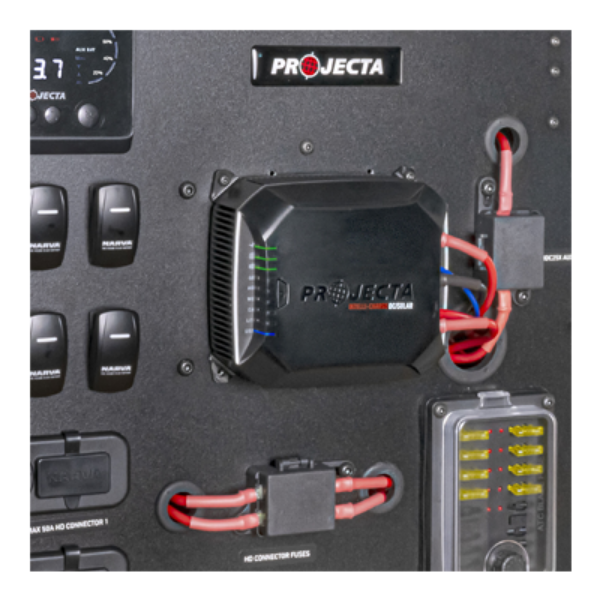

The integrated IDC25X DC-DC charger delivers advanced 3-stage or 5-stage charging from both solar and alternator inputs, ensuring optimal battery performance in a wide range of applications.

Bluetooth Battery Monitoring

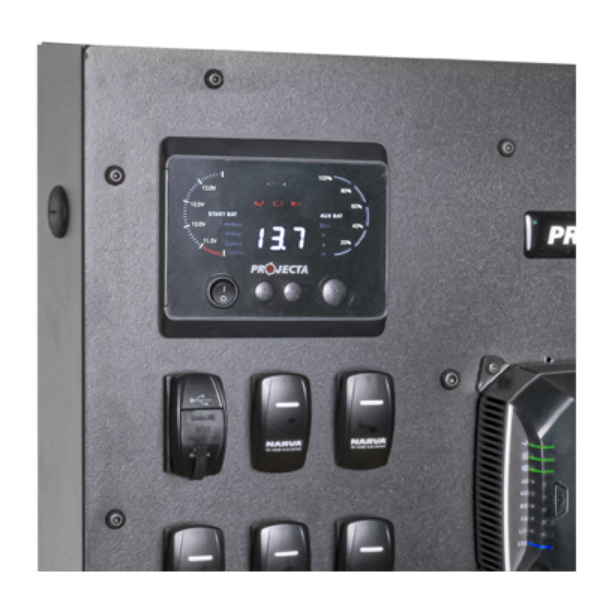

Monitor your battery's State of Charge (SOC), voltage and overall status using the built-in LCD display or the Bluetooth-enabled mobile app.

Complete Power Distribution

Power and charge your accessories with:

• Dual USB charging ports (3.1A total output)
• Merit socket
• Cigarette lighter socket
• Five integrated 20A switches for accessory control

Heavy-Duty Connectivity

Dual 50A heavy-duty connectors provide secure connections for appliances, battery systems and external solar panels.

Built-In Circuit Protection

All outputs are individually fused and conveniently located on the front of the board for quick inspection and easy fuse replacement.

Low Voltage Disconnect Protection

Protect your auxiliary battery from excessive discharge and extend battery life with the integrated Low Voltage Disconnect system.

System Components

• IDC25X DC-DC Charger with MPPT Solar Controller
• LCD Battery Monitor with Bluetooth Connectivity
• 500A Current Shunt
• 5 x 20A Accessory Switches
• Dual USB Charging Socket (3.1A Total Output)
• 2 x 50A Heavy-Duty Connectors
• Merit Socket
• Accessory Socket
• Low Voltage Disconnect
• Individual Front-Mounted Fuse Holders

Ideal For

• Ute Canopies
• Caravans
• Camper Trailers
• 4WD Touring Vehicles
• Off-Grid Battery Systems
• Mobile Power Installations

Special Order Item

This is a special-order product. Orders are typically processed and dispatched within 48–72 hours of purchase.

Click here to download the manual

ICBDC Specifications
