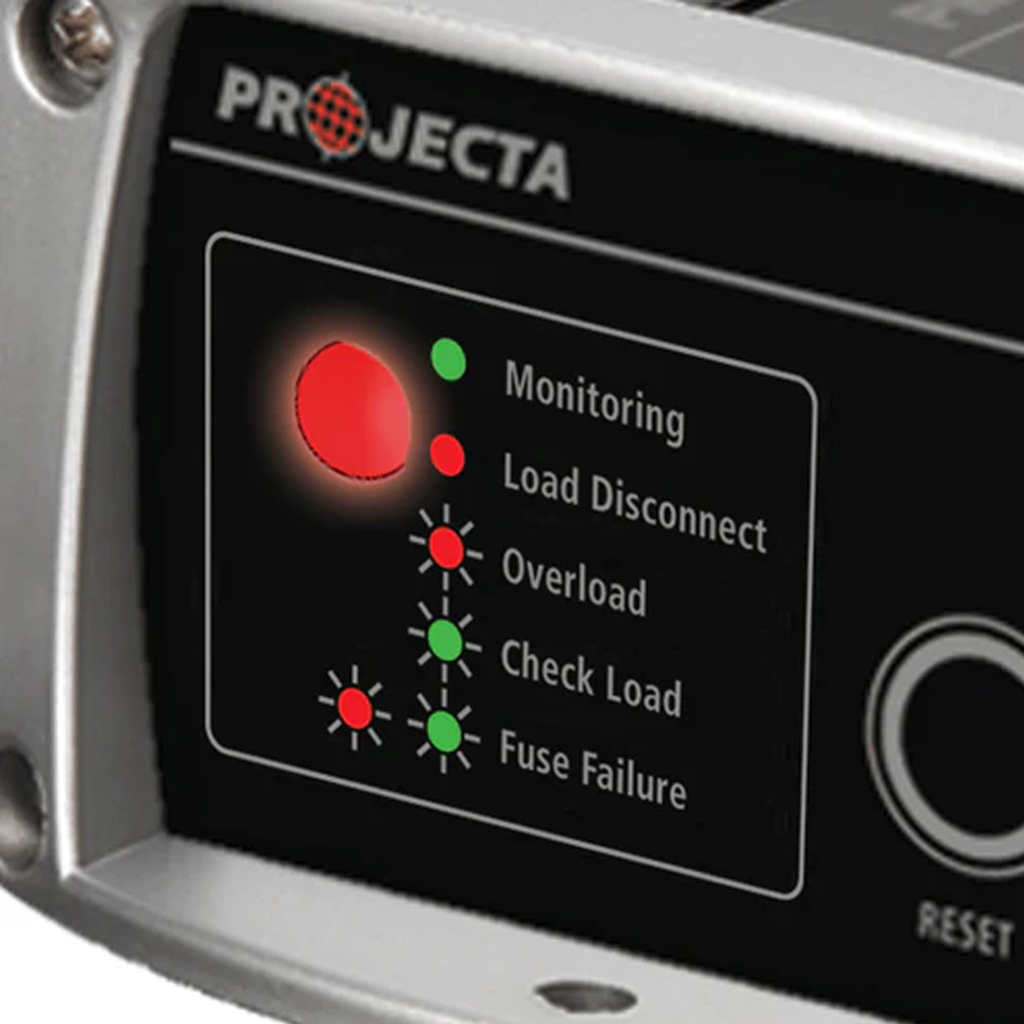

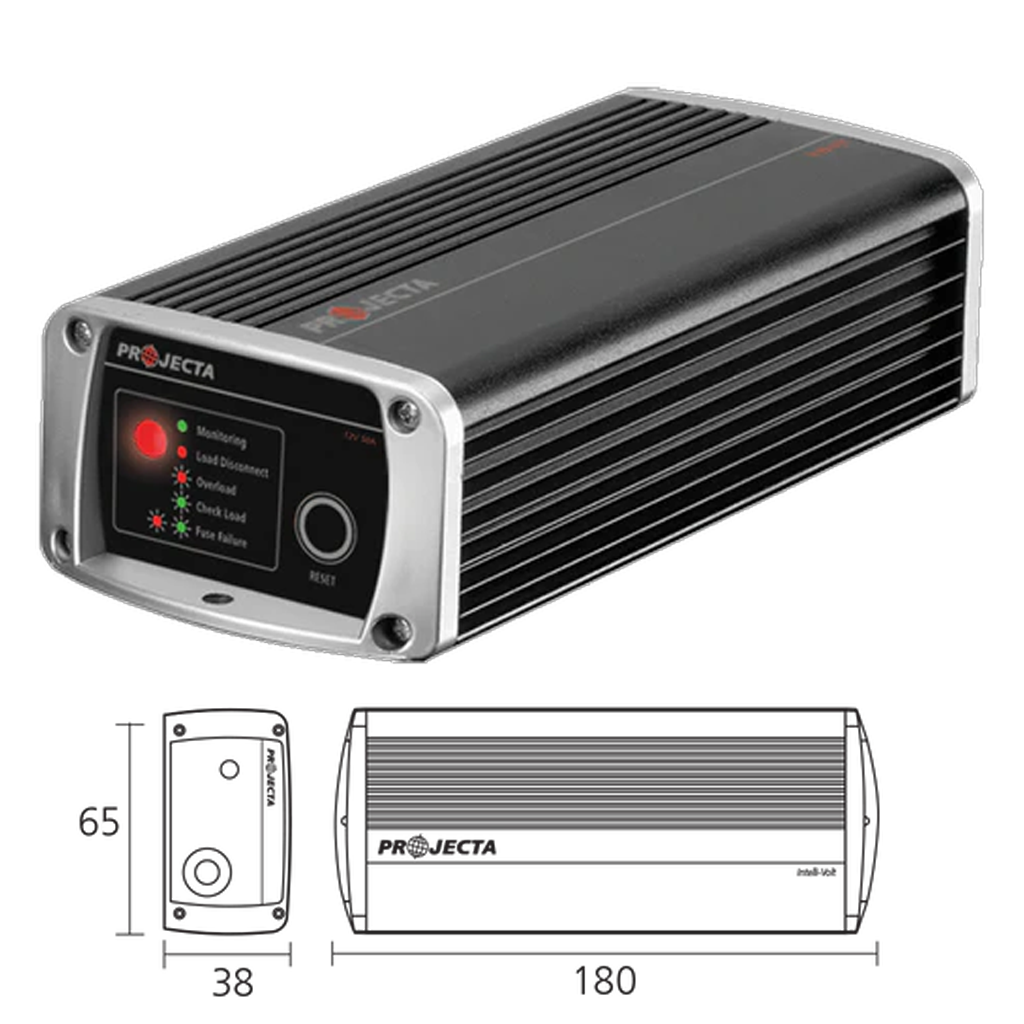

Projecta Intelli-Volt 12V 50A Low Voltage Disconnect (LVD)
The Projecta Intelli-Volt 50A Low Voltage Disconnect (LVD) automatically protects 12V battery systems from excessive discharge. When battery voltage drops below a preset threshold, the LVD disconnects the load — preventing permanent battery damage and extending service life. Compact, reliable, and built for demanding environments, it's the smart choice for caravans, 4WDs, marine vessels, and off-grid power setups.
Key Features
- Automatic load disconnect when battery voltage falls below safe operating level
- 50A continuous current capacity — suitable for a wide range of 12V systems
- Extends battery life by preventing damaging deep discharge
- Protects critical equipment from battery-related failures
- Compact and durable construction for automotive, marine, and off-grid use

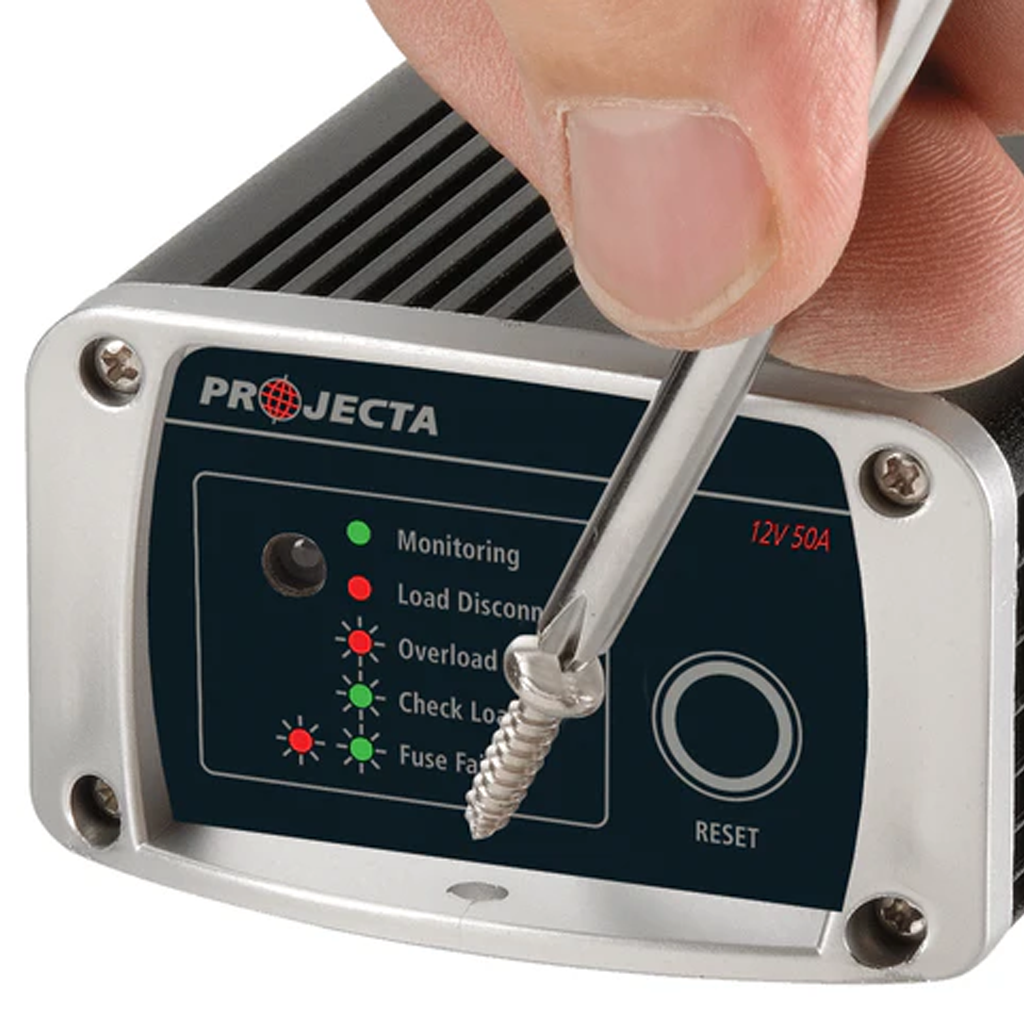

- Simple installation into new or existing 12V battery systems
Specifications
| Model | LVD50 |
|---|---|
| Voltage | 12V DC |
| Continuous Current Rating | 50A |

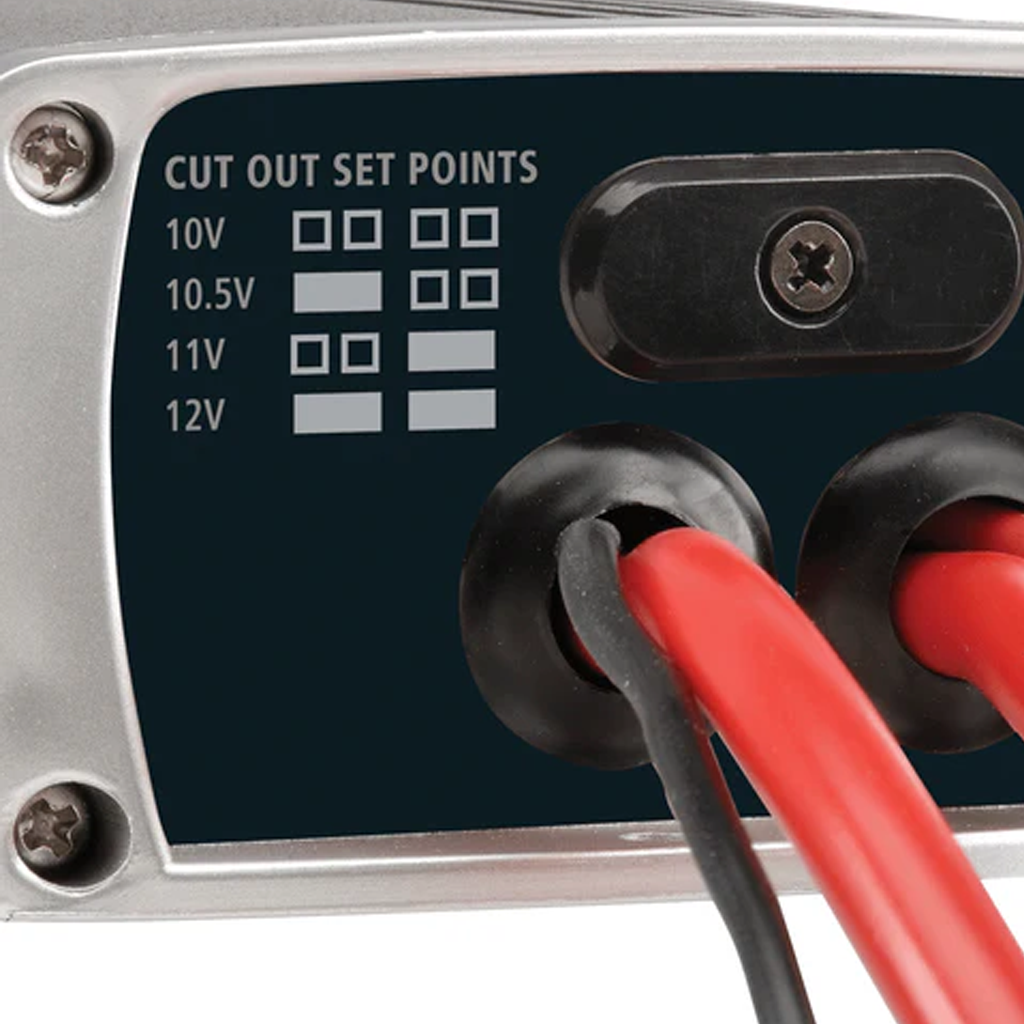

| Disconnect Voltage | ~11.6V (adjustable on some models) |
| Reconnect Voltage | ~12.6V |
| Quiescent Current Draw | <1mA |
| Weight | 0.5 kg |
| Country of Origin | Australia |
| Barcode (EAN) | 9315219606020 |
Ideal For
- Caravans and camper trailers
- 4WD touring vehicles
- Motorhomes
- Marine and boating applications
- Off-grid solar systems
- Auxiliary battery setups
- Portable power systems
Download Product Instruction Manual
