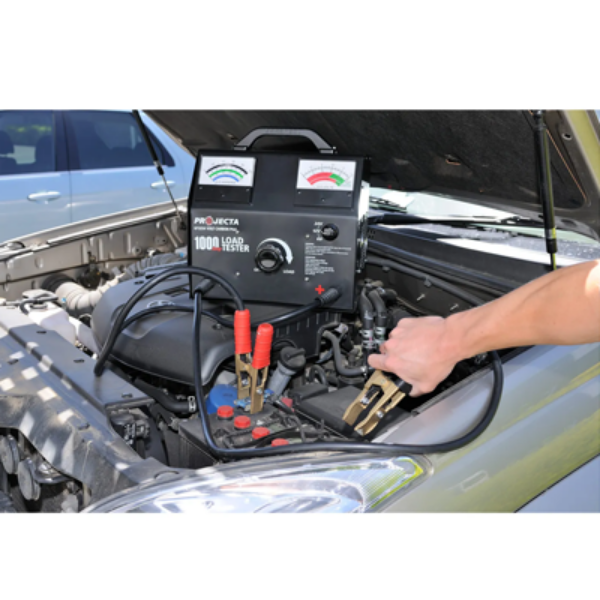

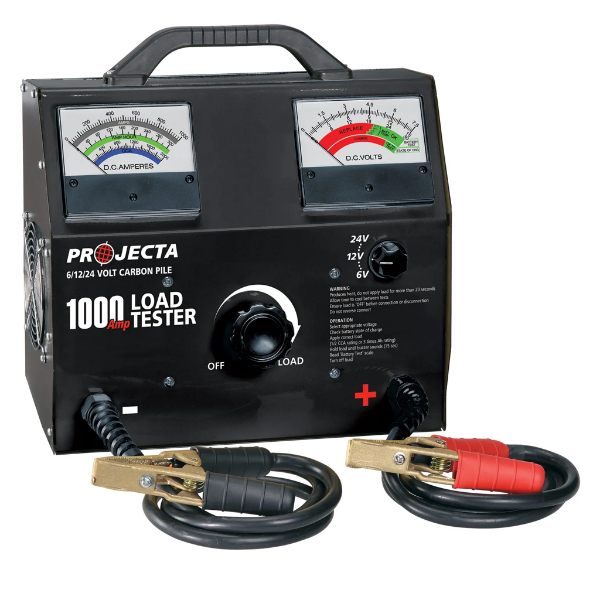

Projecta BLT300 6/12/24V 1000A Carbon Pile Battery Load Tester

Test battery performance with confidence using the Projecta BLT300 heavy-duty 1000A Carbon Pile Load Tester. Designed for professional workshops, automotive technicians, fleet maintenance, battery retailers and industrial applications, this robust tester accurately evaluates the condition and load capacity of 6V, 12V and 24V lead-acid batteries.

Capable of testing batteries up to 2000CCA (320Ah), the adjustable carbon pile load system allows precise load application from 0 to 1000 amps. Large, easy-to-read analogue meters display battery voltage and load simultaneously for fast, straightforward diagnostics.

Key Features

  • Tests 6V, 12V and 24V lead-acid batteries
  • Adjustable load from 0–1000 amps
  • Suitable for batteries up to 2000CCA (320Ah)
  • Dual analogue display — voltage and load simultaneously
  • Built-in audible safety buzzer after 15 seconds
  • 1400mm heavy-duty test cables
  • Rugged construction for workshop environments

Specifications

Specification Details
Battery Voltage 6V, 12V & 24V
Battery Type Lead Acid
Load Capacity 0–1000 Amps
Battery Range Up to 2000CCA (320Ah)
Voltage Range 0–30V DC
Maximum Load Time 20 Seconds
Recommended Cool Down 2 Minutes
Test Alert Buzzer after 15 Seconds
Cable Length 1400mm
Unit Dimensions 350 x 355 x 175mm
Weight 8.4kg
Warranty 12 Months

Download the Projecta BLT300 User Manual
