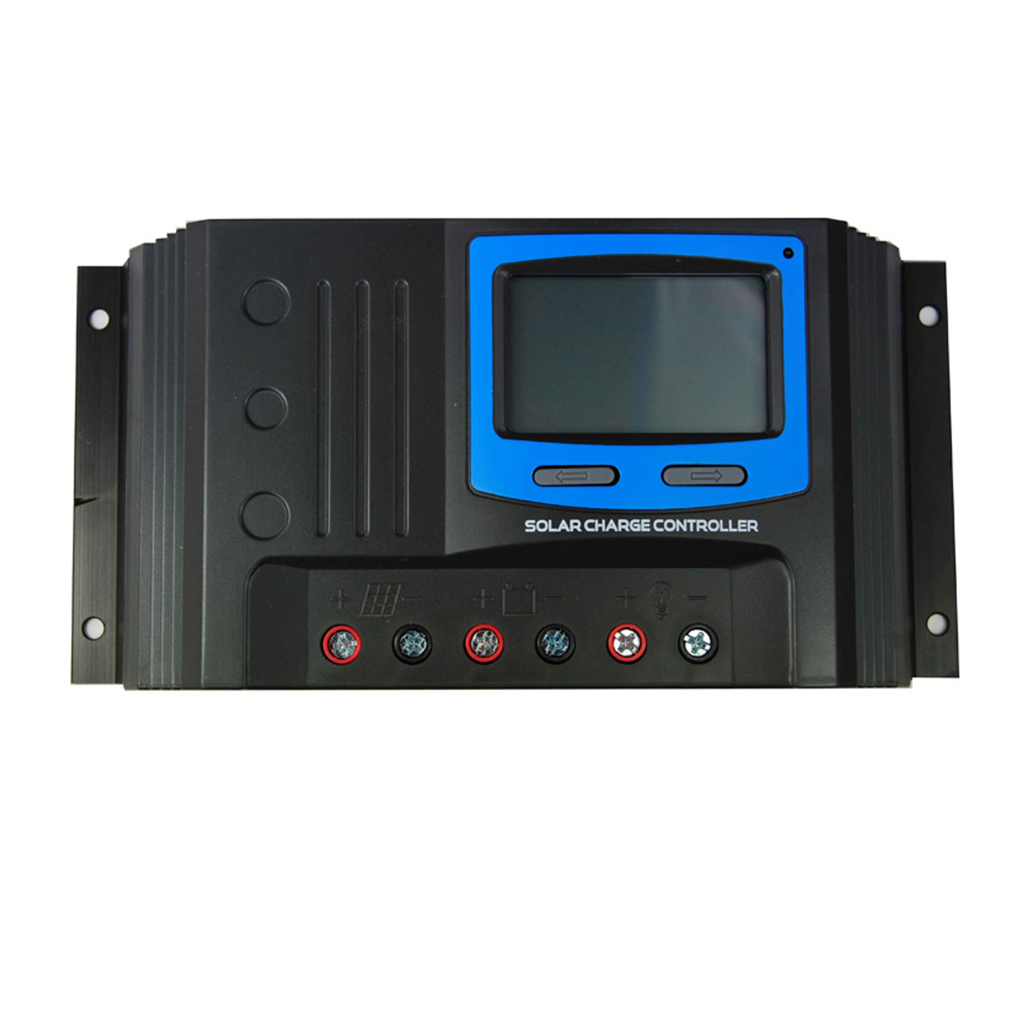

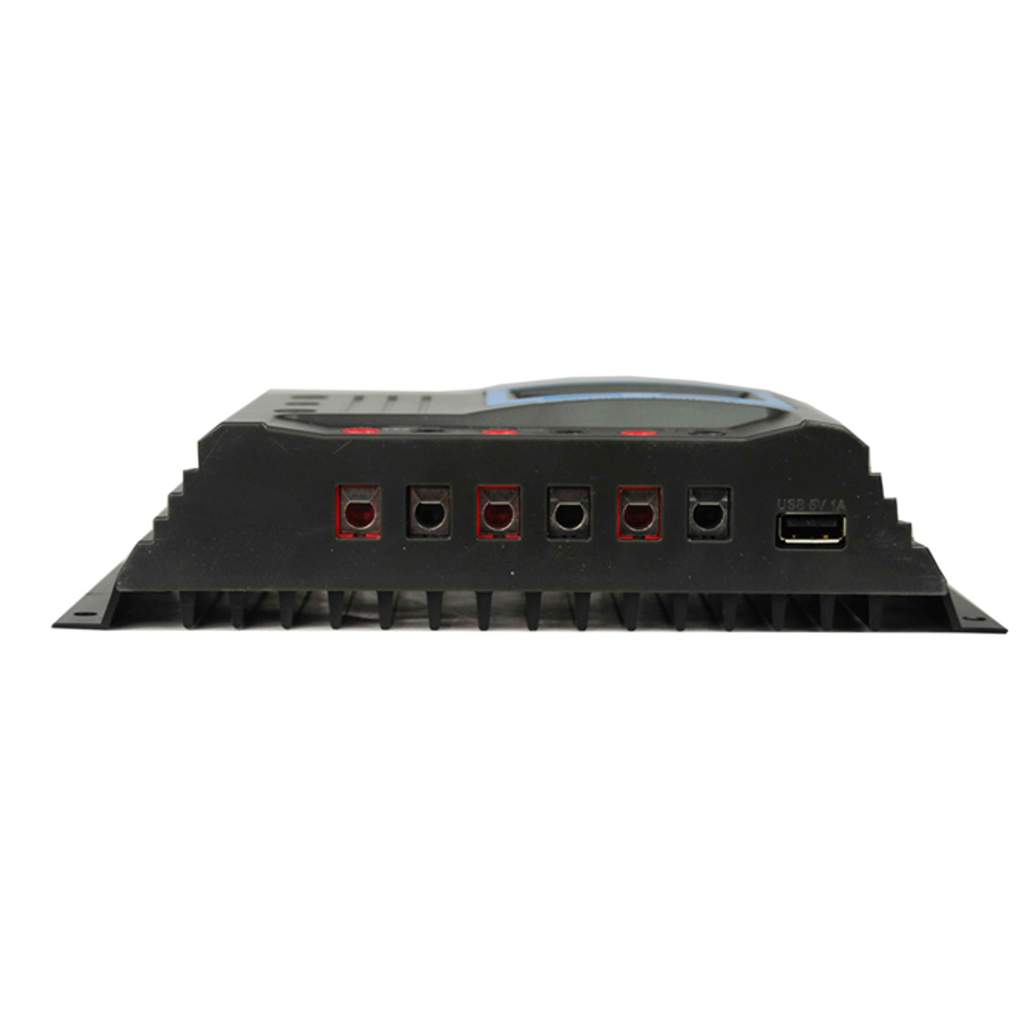

LDSOLAR 30A 12/24VOLT PWM SOLAR CHARGE CONTROLLER SD-2430S

Maximize your solar energy system's efficiency with our 30A 12/24VDC Auto PWM Solar Charge Controller. This powerful unit intelligently regulates charging current, prevents battery overcharging, and extends battery life. Perfect for off-grid setups, RVs, or home solar systems, it delivers reliable performance and protection for your valuable equipment. Invest in smarter solar power management today.

Features:

• 30 Amp Maximum Current
• 12/24VDC Auto Select
• USB Charging Socket
• Adjustable Load Timer Output
• Large Heat Sink
• Charge Status Indicator
• Under and Over Voltage Indicators
• Load on/off Selectable
• LCD Display
• Large Terminals for large cables
• Reverse Polarity Protection
• PWM 3 Stage Charging
• 2 Hour Boost Charge when under voltage
• Over Current Protection
• Reverse Polarity Protection

Specifications:

• Dimensions: 199x95x43mm
• Mounting holes: 189x70mm
• Terminal Size: 16mm2
• Enclosure Rating: IP32
• Temperature Range: -20°C~+55°C
• Voltage Range: 12/24V Auto Selectable
• Standby Current Drain: 10mA
• Maximum Current: 30AMP
• Maximum Input Voltage: 55V
• Overload Protection: 30sec restart
